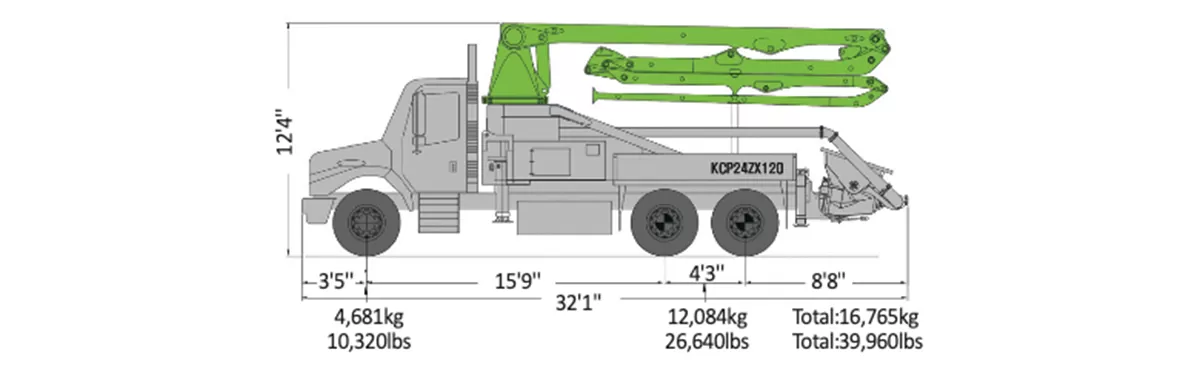

24-Meter KCP Concrete Pump KCP24ZX120
(In stock)
| Product Name | 24-Meter KCP Concrete Pump KCP24ZX120 |
| Part Number | KCP24ZX120 |
| Category | Pumps |
| Manufacturer | KCP Concrete Pumps |
| Country Of Origin | Korea |

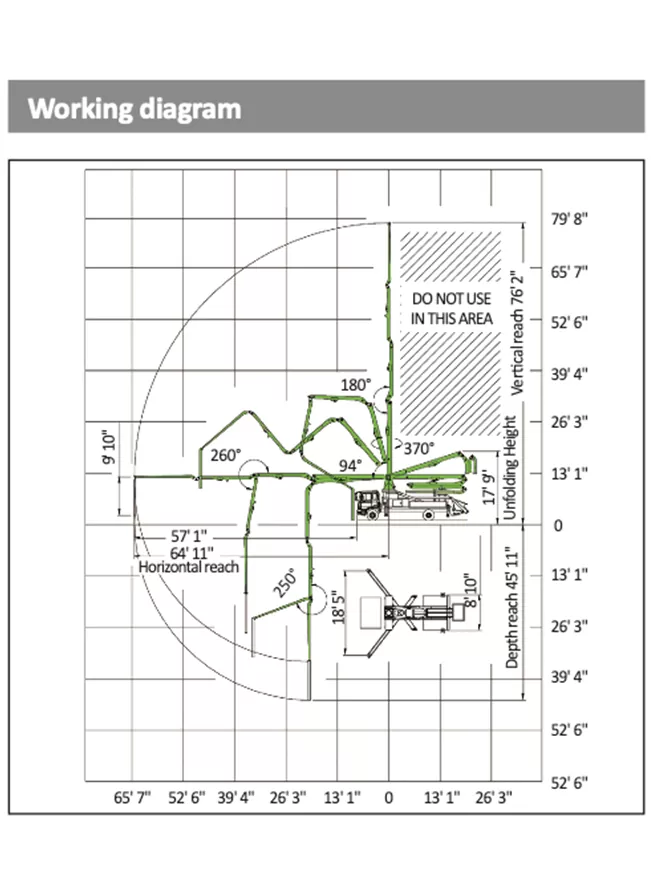

Boom Specifications
| Specification | Value |
|---|---|
| Vertical Height | 23.2 m (76’2”) |
| Horizontal Reach | 19.8 m (64’11”) |
| Reach from Front of Truck | 17.3 m (57’1”) |
| Unfolding Height | 5.4 m (17’9”) |
| End Hose Length | 3 m (9’10”) |
| Delivery Line Diameter | 125 mm (5”) |
| Proportional Beam | — (Not specified) |
| Section Articulation | 94° / 180° / 260° / 250° |
| Outrigger Spread - Front | 5.6 m (18’5”) |
| Outrigger Spread - Rear | 2.7 m (8’10”) |
| Rotation | 370° |
| Max. Outrigger Weight | 11,000 kg (24,251 lbs) |
Pump Specifications
| Specification | Value |
|---|---|
| Maximum Output | 120 m³/h (157 yd³/h) |
| Hydraulic Pump | Rexroth A11VL0190 |
| Concrete Cylinder Size | Ø230 x 1,400 mm (9” x 55”) |
| Cycling System | Hydraulic with manual overrides |
| Max. Aggregate Size | 40 mm (1.5”) |
| Concrete Pressure | 63 bar (914 psi) |
| Water Tank Volume | 450 L (118.9 Gal) |
| Hopper Capacity | 0.6 m³ (21 ft³) |
