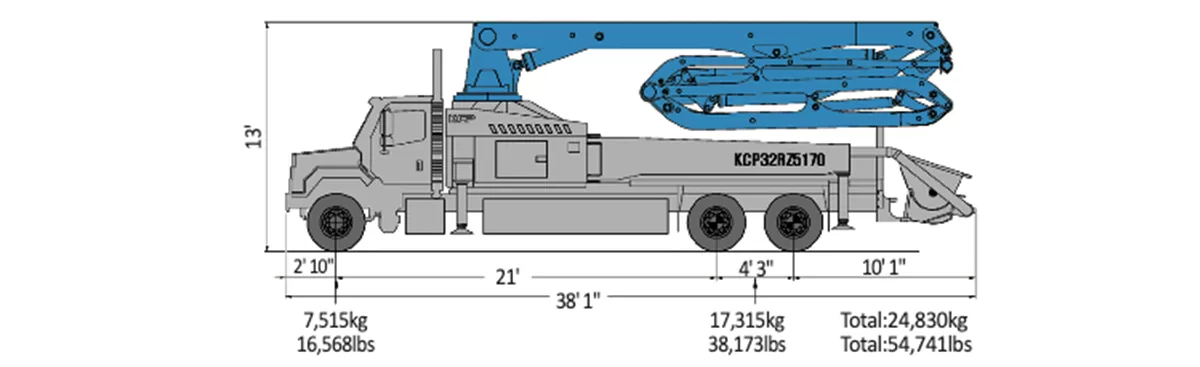

32-Meter 5-Section KCP Concrete Pump KCP32RZX5170
(In stock)
| Product Name | 32-Meter 5-Section KCP Concrete Pump KCP32RZX5170 |
| Part Number | KCP32RZX5170 |
| Category | Pumps |
| Manufacturer | KCP Concrete Pumps |
| Country Of Origin | Korea |
Boom Specifications
| Specification | Value |
|---|---|
| Vertical Height | 31.8 m (104’4”) |
| Horizontal Reach | 27.8 m (91’) |
| Reach from Front of Truck | 24.9 m (81’10”) |
| Unfolding Height | 5.8 m (19’1”) |
| End Hose Length | 3 m (9’10”) |
| Delivery Line Diameter | 125 mm (5”) |
| Proportional Beam | Yes |
| Section Articulation | 92° / 180° / 240° / 215° / 235° |
| Outrigger Spread - Front | 6.2 m (20’4”) |
| Outrigger Spread - Rear | 7.2 m (23’8”) |
| Rotation | 370° |
| Max. Outrigger Weight | 20,500 kg (45,195 lbs) |
Pump Specifications
| Specification | Value |
|---|---|
| Maximum Output | 170 m³/h (222 yd³/h) |
| Hydraulic Pump | Rexroth A11VL0260 |
| Concrete Cylinder Size | Ø230 x 2,100 mm (9” x 83”) |
| Stroke Per Minute | 32 |
| Cycling System | Hydraulic with manual overrides |
| Max. Aggregate Size | 40 mm (1.5”) |
| Concrete Pressure | 72 bar (1,044 psi) |
| Water Tank Volume | 454 L (120 Gal) |
| Hopper Capacity | 0.6 m³ (21 ft³) |
| S-tube Size | Ø230 x Ø180 mm (9” x 7”) |
