33-Meter 5 Section KCP Concrete Pump KCP33RZ5170
(In stock)
| Product Name | 33-Meter 5 Section KCP Concrete Pump KCP33RZ5170 |
| Part Number | KCP33RZ5170 |
| Category | Pumps |
| Manufacturer | KCP Concrete Pumps |
| Country Of Origin | Korea |

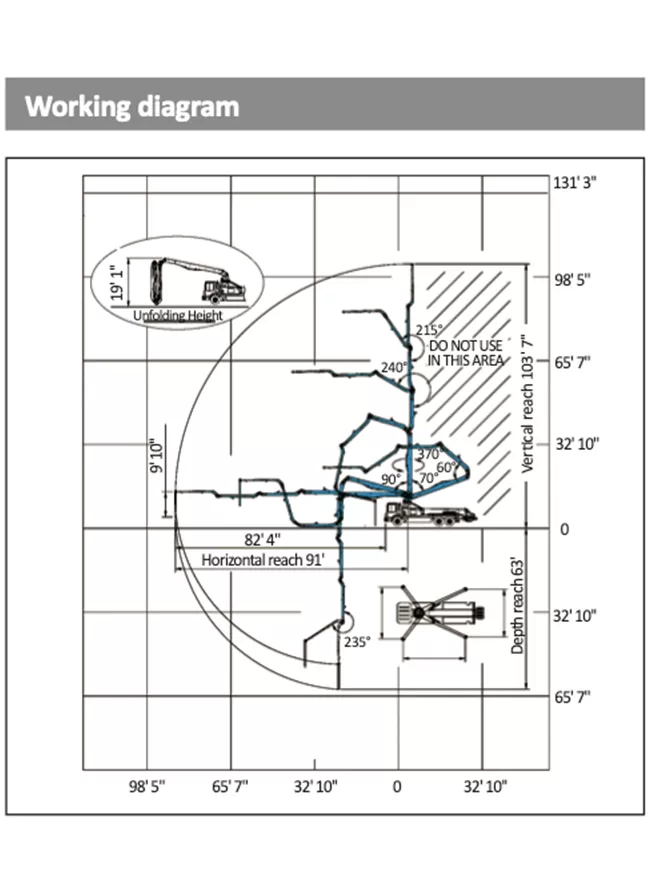

Boom Specifications
| Specification | Value |
|---|---|
| Vertical Height | 31.6 m (103’7”) |
| Horizontal Reach | 27.7 m (91’) |
| Reach from Front of Truck | 25.1 m (82’4”) |
| Unfolding Height | 5.8 m (19’1”) |
| End Hose Length | 3.0 m (9’10”) |
| Delivery Line Diameter | 125 mm (5”) |
| Section Articulation | 90° / 70° / 180° / 240° / 215° / 235° |
| Outrigger Spread – Front | 6.18 m (20’4”) |
| Outrigger Spread – Rear | 7.15 m (23’8”) |
| Max. Outrigger Weight | 22,500 kg (49,604 lbs) |
Pump Specifications
| Specification | Value |
|---|---|
| Maximum Output | 170 m³/h (222 yd³/h) |
| Concrete Pressure | 72 bar (1,044 psi) |
| Concrete Cylinder Size | Ø230 x 2,100 mm (9” x 83”) |
| Cycling System | Hydraulic with manual overrides |
| Max. Aggregate Size | 40 mm (1.5”) |
| Hopper Capacity | 0.6 m³ (21 ft³) |
