34-Meter 5 Section KCP Concrete Pump KCP34ZX5150
(In stock)
| Product Name | 34-Meter 5 Section KCP Concrete Pump KCP34ZX5150 |
| Part Number | KCP34ZX5150 |
| Category | Pumps |
| Manufacturer | KCP Concrete Pumps |
| Country Of Origin | Korea |

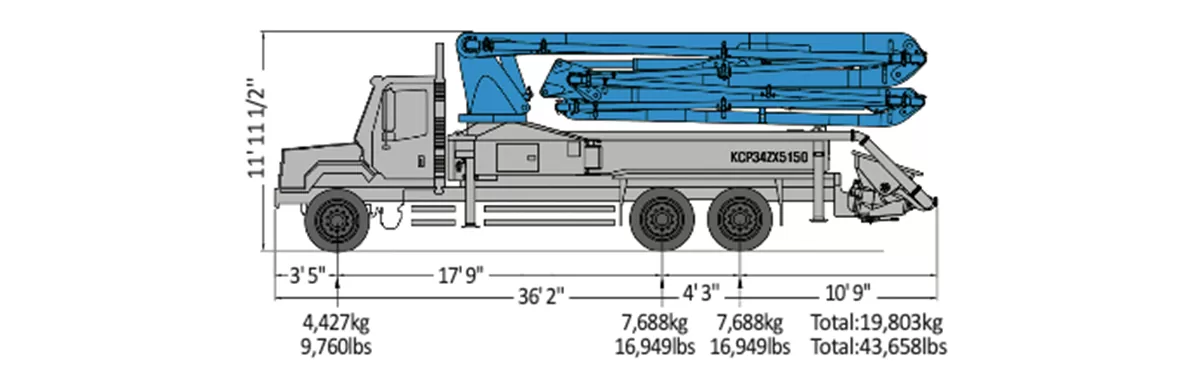

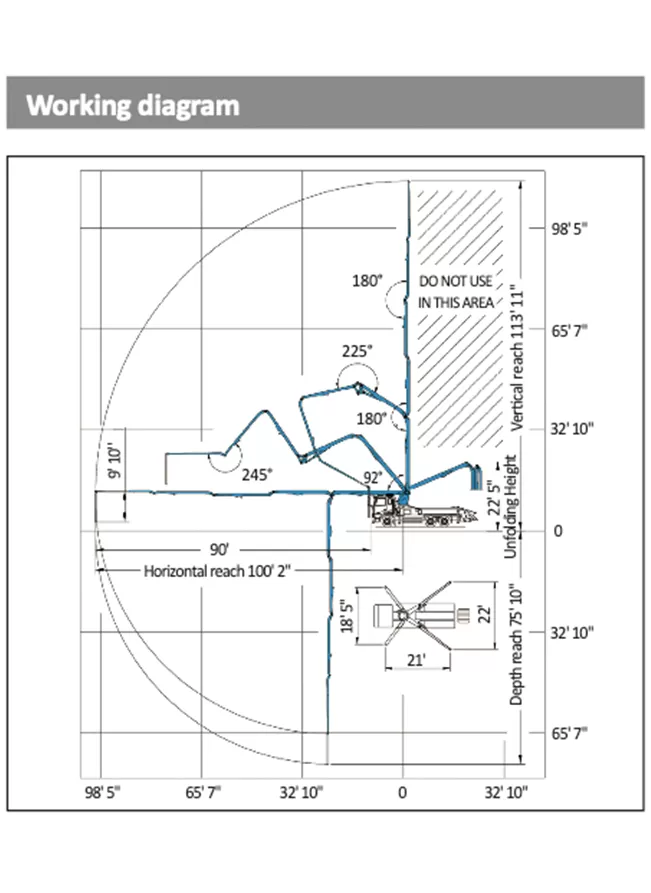

Boom Specifications
| Specification | Value |
|---|---|
| Vertical Height | 34.7 m (113’11”) |
| Horizontal Reach | 30.5 m (100’2”) |
| Reach from Front of Truck | 27.4 m (90’) |
| Unfolding Height | 6.8 m (22’5”) |
| End Hose Length | 3.0 m (9’10”) |
| Delivery Line Diameter | 125 mm (5”) |
| Boom Rotation | 370° |
| Section Articulation | 92° / 180° / 225° / 180° / 245° |
| Outrigger Spread – Front | 5.6 m (18’5”) |
| Outrigger Spread – Rear | 6.7 m (22’) |
| Max. Outrigger Weight | 16,000 kg (35,274 lbs) |
| Proportional Beam | Yes |
Pump Specifications
| Specification | Value |
|---|---|
| Maximum Output | 150 m³/h (196 yd³/h) |
| Concrete Pressure | 63 bar (914 psi) |
| Hydraulic Pump | Rexroth A11VLO260 |
| Concrete Cylinder Size | Ø230 x 1,800 mm (9” x 71”) |
| Cycling System | Hydraulic with manual overrides |
| Max. Aggregate Size | 40 mm (1.5”) |
| Hopper Capacity | 0.6 m³ (21 ft³) |
| Water Tank Volume | 450 L (118.9 Gal) |
