Axial Fan
(In stock)
| Product Name | Axial Fan |
| Model Number | DS Series |
| Brand | Osung Machine ENG |
| Category | Industrial Ventilation Equipment |
| Country of Origin | South Korea |
| Material | - |
| Applications | Designed for industrial ventilation, HVAC systems, and environments requiring efficient air movement. |

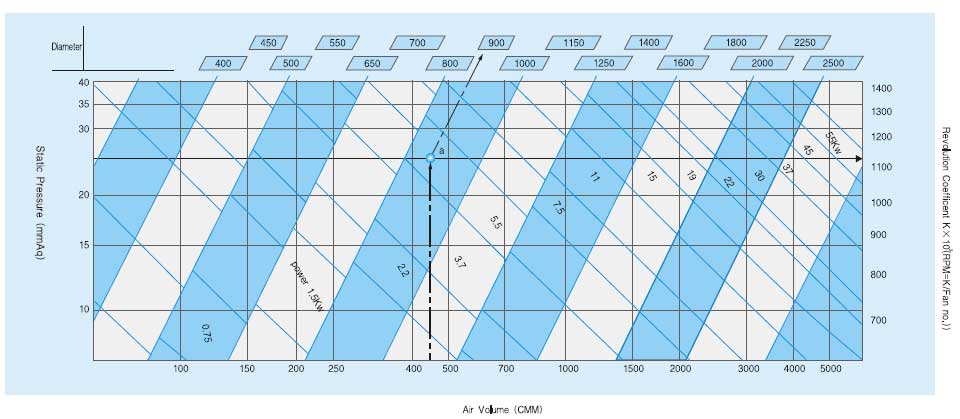

Where the air volume is 450 CMM and static pressure 25mmAq
1) The value 5.5kw is obtained from the crossing point "ⓐ" of the air volume and the static pressure.
2) The diameter 900 is obtained by drawing a parallel line from the crossing point 'a' to the right-upper oblique line.
3) The revolution coefficient K=1134 10 is obtained by drawing a parallel line from the crossing point 'a' to the right.
4) Conclusion :AXIAL FLOW FAN EAF-900, 400 cmm 25mmaq 1260rpm 5.5kw.
