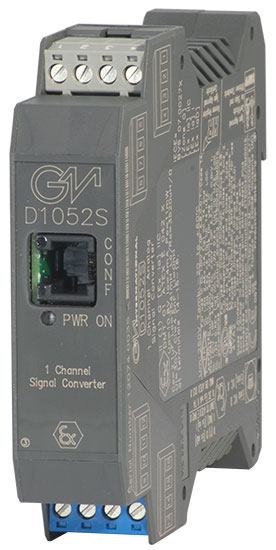

The single and dual channel DIN Rail Analog Signal Converter D1052S and D1052D accepts a voltage or current input from externally powered transmitters, located in Hazardous Area, and converts, with isolation, the signal to drive a Safe Area load. Output signal can be direct or reverse. Duplicator type D1052X provides two independent outputs for the single input. Adder, subtractor, low/high selector type D1052Y provides two independent outputs representing input A, input B, input A plus input B, input A minus input B, low/high selector.

FEATURES
Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
Three port isolation, Input/Output/Supply.
EMC Compatibility to EN61000-6-2, EN61000-6-4.
Fully programmable operating parameters.
ATEX, IECEx, UL & C-UL, FM & FM-C, INMETRO, EAC-EX, UKR TR n. 898 Certifications.
Type Approval Certificate DNV and KR for maritime applications.
High Density, two channels per unit.
250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier.
Discover D1000

STATUS
   SPARE-ONLY
Next: OBSOLETE (2025-12-31)

Product lifecycle policy (EN)

ALTERNATIVE PRODUCT
D5254S
CHANNELS
1
