CF-SHIELD (Ethernet Shield Baseboard)
(In stock)
| Product Name | CF-SHIELD (Ethernet Shield Baseboard) |
| Model Number | CF-SHIELD |
| Brand | Comfile Technology |
| Category | Baseboard for Ethernet Shield |
| Country of Origin | South Korea |
| Material | Housing: Durable plastic or metal enclosures to withstand industrial environments.PCB Material: FR4 fiberglass-reinforced epoxy laminate, commonly used for printed circuit boards due to its durability and electrical insulation properties.Connectors & Terminals: Metal contacts (often gold-plated or tin-plated copper) to ensure reliable electrical connections and resistance to corrosion.Mounting Hardware: Metal components such as screws and DIN rail clips, typically made from stainless steel or brass, to securely mount the baseboard in industrial settings.. |
| Applications | Provides Ethernet connectivity to CFMEGA2 modules by accommodating an Arduino Ethernet Shield. |

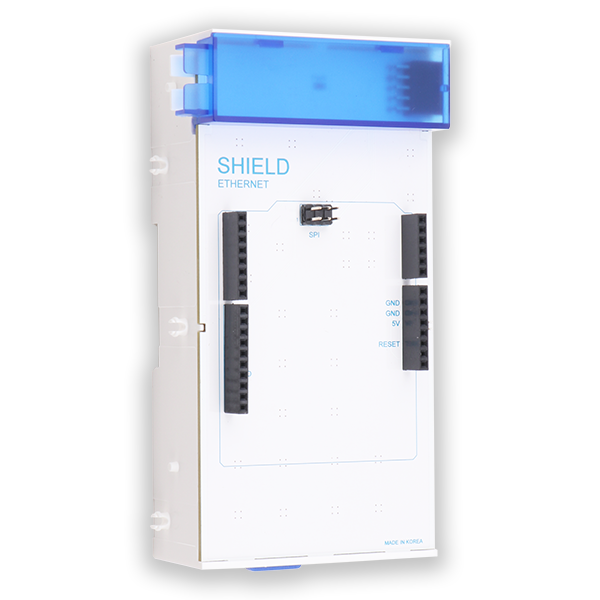

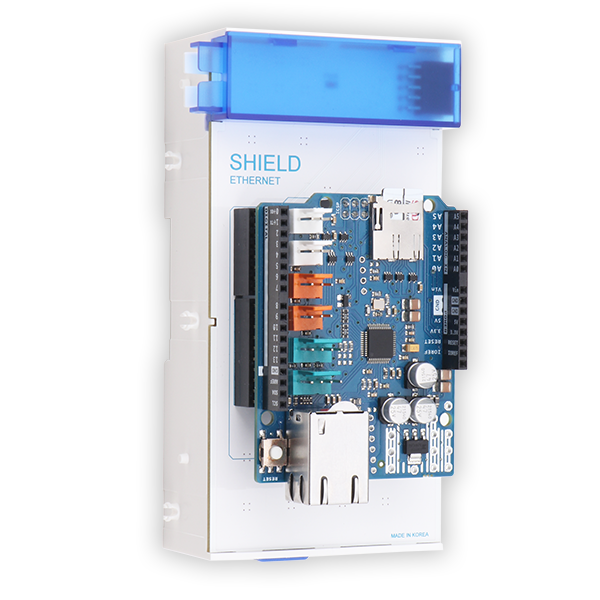

This is a baseboard that can be equipped with an Arduino Ethernet Shield board. It can be mounted on the left side of the CFMEGA2 module.
[MODULAR FADUINO Instruction Manual]
• Use original Arduino Ethernet Shield (sold separately).
• You can use the Ethernet libraries provided by Arduino.
• Only SPI and a few GPIOS (4, 10) are wired to connect to the Ethnet Shield board. Other GPIOs are not attached.
• Only CFMEGA2 models can be connected (CFMEGA1 not supported)
• DIN rail available
