EXT 1036B
(In stock)
| Product Name | EXT 1036B |
| Model Number | EXT 1036B |
| Brand | DRTECH |
| Category | Industrial Non‑Destructive Testing (NDT) Digital X‑ray Detector – Bendable/Flexible Panel |
| Country of Origin | South Korea |
| Material | Scintillator: Gadolinium oxysulfide (GOS) Pixel Matrix: 768 × 2,304 pixels — approximately 140 µm pixel pitch Active Imaging Area: 107 × 322 mm (approx. 4.2″ × 12.7″) Weight: ~2.3 kg (some sources indicate approximately 2.0 kg) drtech.co.kr / Design: Flexible, non-glass, bendable panel conforming to curved surfaces (pipes/tanks ≥ 8″ diameter), offering zero distortion Protection: Rugged, suitable for field use; water/dust resistant (implied IP67-level durability) onestopndt.com. |
| Applications | Designed for industrial NDT, the EXT 1036B excels in distortion-free imaging of welds on curved pipes, tanks, and cylindrical surfaces, making it ideal for pipe and tank inspections in oil & gas, petrochemical, power generation, and other heavy industries. |

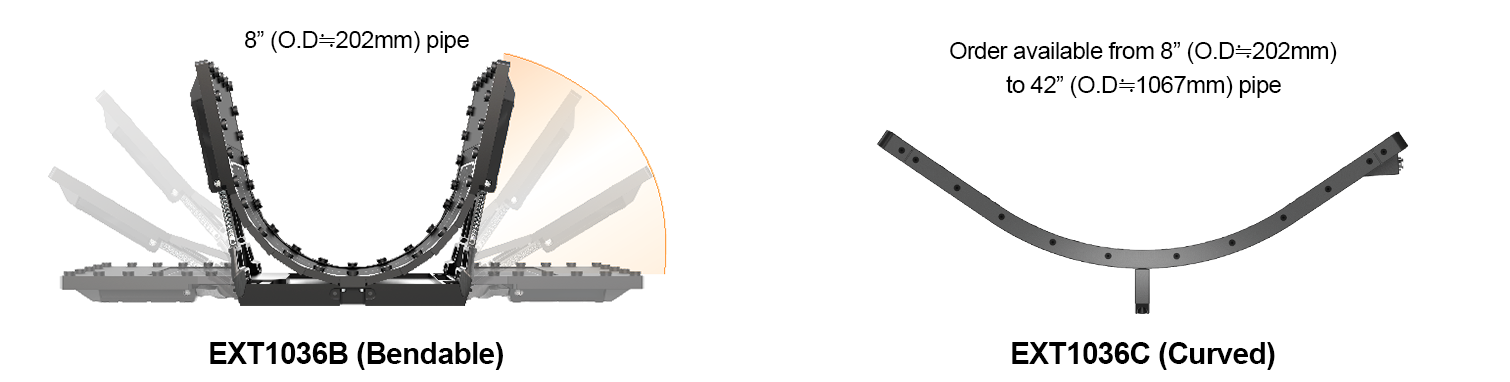

World 1st pipe & tank cover designed digital X-ray panel (Free movement from 8")

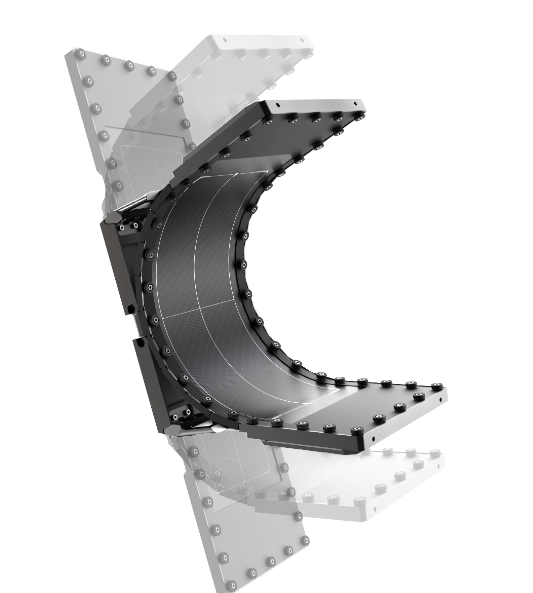

Conforms to the pipe, zero distortion
Light weight for the carry out.
