Signal Processing Unit
(In stock)
| Product Name | Signal Processing Unit |
| Model Number | - |
| Brand | CDI Korea |
| Category | Signal Processing Equipment |
| Country of Origin | South Korea |
| Material | Typically constructed from durable materials to ensure reliable performance in industrial environments. |
| Applications | Designed for processing various types of signals, including audio, video, and scientific measurements, to enhance data quality and transmission efficiency. |
Signal Processing Unit

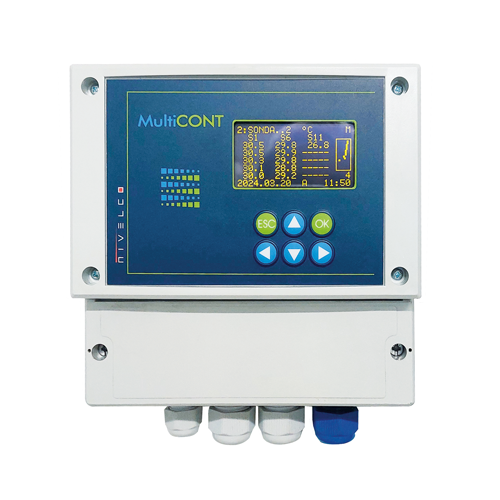

MultiCONT
The MultiCONT unit is a universal interface between NIVELCO’s HART®-capable intelligent level transmitters and other elements of the process control systems like the PCs, PLCs, displays, and actuators. Besides its role as an interface, the MultiCONT can power the 2-wire transmitters while handling complex control tasks.
SPECIFICATIONS
Supply voltage 11.4… 40 V DC; 11.4… 28 V AC; 85… 255 V AC
Ambient temperature -20…+50 °C
Input Up to 15 HART® devices
Outputs, internal max. 2× 4… 20 mA max. 5× relays (SPDT)
Outputs, external max. 16× 4… 20 mA via RS485 max. 64× relays (SPDT)
Storage medium SD card (max. 32 GB) Flash Memory ? USB
Ingress protection IP65
Certificates ATEX, IEC Ex, INMETRO, UKCA Ex
