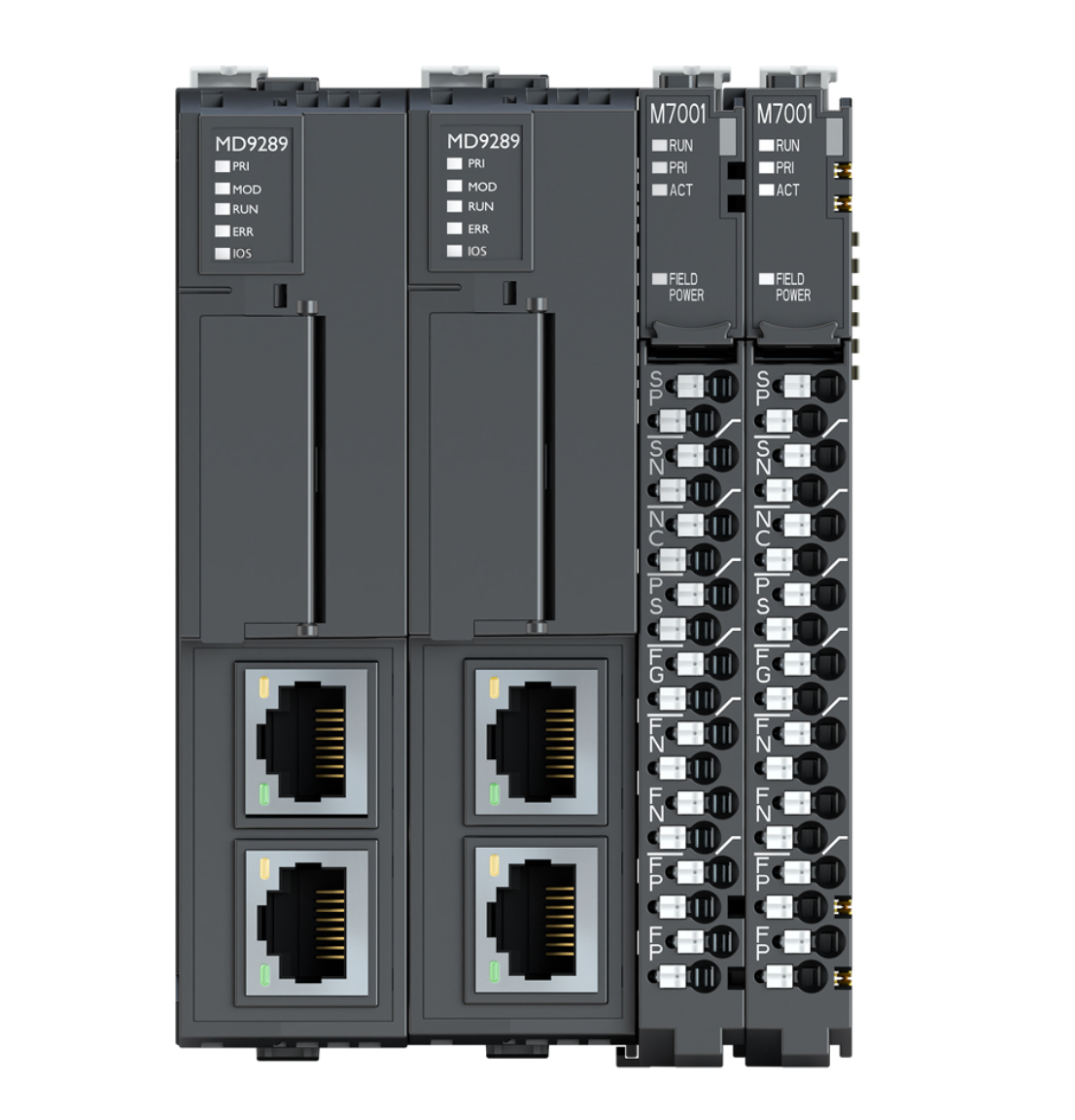

MODBUS TCP Network Adapter (Dual Type)
(In stock)
| Product Name | MODBUS TCP Network Adapter (Dual Type) |
| Part Number | MD9289 |
| Category | Network Communication |
| Brand | CREVIS |
| Country of Origin | South Korea |
| Material | High-grade Plastic |
| Adapter Type | Slave node (MODBUS/TCP, MODBUS/UDP Server), Dual |
| Protocol | MODBUS/TCP, MODBUS/UDP, HTTP, DHCP, 10 TCP Connections |
| Max. Expansion Module | 63 Slots |
| Max. Redundancy Data Size | 400 bytes (Input + Output + Parameter) |
| Max. Data Size (Input + Output) | 128 bytes per slot |
| Max. Length Bus Line | Up to 100m from Ethernet Hub/Switch with twisted CAT5 UTP/STP |
| Max. Nodes | Limited by Ethernet Specification |
| Baud Rate | 10/100Mbps, Auto-negotiation, Full Duplex |
| Interface Connector | RJ-45 socket * 2 pcs |
| IP Address Setup | Via DHCP/BOOTP or IOGuide (Crevis Software) |
| IP Address Range | xxx.xxx.xxx.1 ~ 253 (User area) |
| Serial Port | RS232 for MODBUS/RTU, Touch Panel, or IOGuidePro |
| Serial Configuration (RS232) | Node: 1 (Fixed), Baud Rate: 115200 (Fixed), 8 Data Bits, No Parity, 1 Stop Bit |
| Indicators | 5 LEDs: PRI (Main Module Status), MOD (Module Status), LINK (Connection), ACT (Traffic), IOS (Expansion I/O Status) |
| RJ45 Connector LEDs | 1 Yellow (Link/Active), 1 Green (Not Used) |
| Module Location | Starter module left side of M-Series system |
