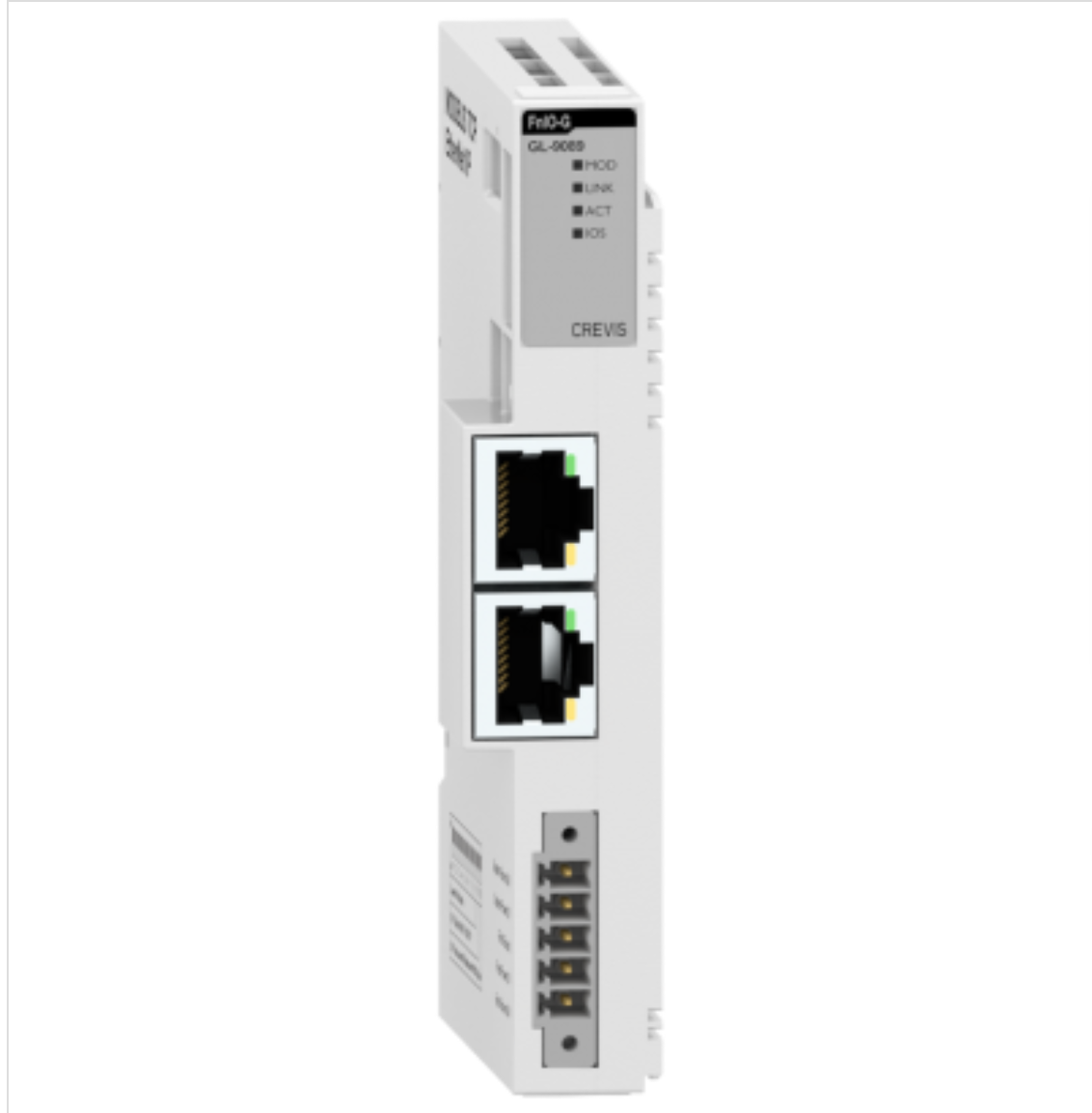

MODBUS TCP/UDP NETWORK ADAPTER
(In stock)
| Product Name | MODBUS TCP/UDP NETWORK ADAPTER |
| Part Number | GL-9089 |
| Category | Network Communication |
| Brand | CREVIS |
| Country of Origin | South Korea |
| Material | High-grade Plastic |
| Adapter Type | Slave node (MODBUS/TCP, MODBUS/UDP Server) |
| Protocol | MODBUS/TCP, MODBUS/UDP, HTTP, DHCP, 10 TCP Connections |
| Sub-Protocol | Ethernet/IP |
| Max. Expansion Module | 16 Slots |
| Max. Input / Output Data Size | Max Input: 256 bytes / Max Output: 256 bytes |
| Max. Length Bus Line | Up to 100m from Ethernet Hub/Switch with twisted CAT5 UTP/STP |
| Max. Nodes | Limited by Ethernet Specification |
| Baud Rate | 100Mbps, Auto-negotiation, Full Duplex |
| Interface Connector | RJ-45 socket * 2 pcs |
| IP Address Setup | Via DHCP/BOOTP or IOGuide (Crevis Software) |
| IP Address Range | xxx.xxx.xxx.1 ~ 253 (User Area), xxx.xxx.xxx.254 ~ 255 (Reserved for IAP Function) |
| IAP Mode | DIP Switch 1 to 8 set to 254 or 255 (Internet Explorer v11 recommended) |
