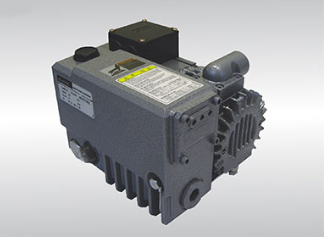

Rotary Vane Vacuum Pump MVO-008, MVO-016
(In stock)
| Product Name | Rotary Vane Vacuum Pump MVO-008, MVO-016 |
| Model Number | MVO-008, MVO-016 |
| Brand | DOOVAC |
| Category | Oil-Circulated Rotary Vane Vacuum Pumps |
| Country of Origin | South Korea |
| Material | Cast iron housing, carbon composite vanes, oil-resistant seals. |
| Applications | Vacuum packaging, food processing, laboratory equipment, medical instruments, vacuum molding, vacuum drying, and vacuum consolidation. |
| Technical Data | MVO-008 | MVO-016 | ||
|---|---|---|---|---|
| Nominal Displacment | 50Hz | m3/hr | 8.0 | 16 |
| Nominal Displacment | 60Hz | ℓ/min | 9.6 | 19 |
| Ultimate Pressure | A | mbar | 0.5 | 2 |
| Ultimate Pressure | C | mbar | 20 | 20 |
| Motor Version-3 | 50Hz | V | - | - |
| Motor Version-3 | 60Hz | V | - | - |
| Motor Version-1 | 50Hz | V | 220 | 220 |
| Motor Version-1 | 60Hz | V | 220 | 220 |
| Nominal Motor Rating-3 | - | kW | - | - |
| Nominal Motor Rating-1 | - | kW | 0.42 | 0.55 |
| Nominal Motor Speed | 50Hz | min-1 | 1430 | 3000 |
| Nominal Motor Speed | 60Hz | min-1 | 1720 | 3600 |
| Sound Level | - | dB(A) | 52 | 60 |
| Water Vapour Tolerance Max | - | mbar | - | - |
| Water Vapour Capacity | - | ℓ/h | - | - |
| Operating Temperature Ambient | - | °C | 40 | 40 |
| Oil Filling | - | liter | 0.3 | 0.3 |
| Weight Appox | - | kg | 18 | 18 |
