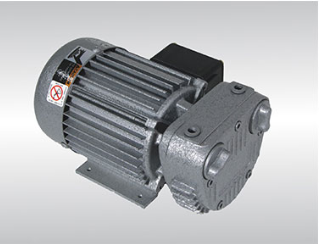

Rotary Vane Vacuum Pump SML-140
(In stock)
| Product Name | Rotary Vane Vacuum Pump SML-140 |
| Model Number | SML-140 |
| Brand | DOOVAC |
| Category | Oil-Circulated Rotary Vane Vacuum Pumps |
| Country of Origin | South Korea |
| Material | Cast iron housing, carbon composite vanes, oil-resistant seals. |
| Applications | Vacuum packaging, food processing, laboratory equipment, medical instruments, vacuum molding, vacuum drying, and vacuum consolidation. |
| Technical Data | SML 140 | ||
|---|---|---|---|

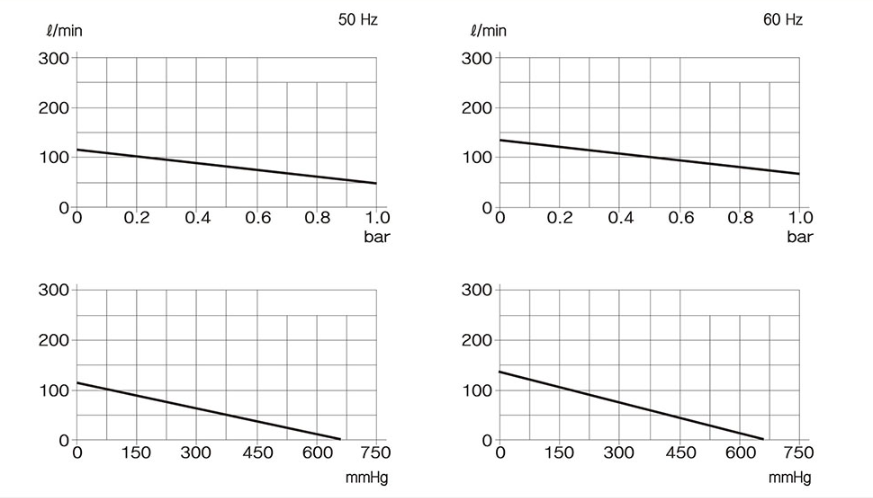

| Nominal Displacment | 50Hz | ℓ/min | 120 |
| Nominal Displacment | 60Hz | ℓ/min | 140 |
| Ultimate Pressure | - | mmHg | 660 |
| Ultimate Pressure | - | bar | 1.0 |
| Motor Version-3 | - | V | - |
| Motor Version-1 | - | V | 110/220 |
| Nominal Motor Rating-3 | - | kW | - |
| Nominal Motor Rating-1 | - | kW | 0.25 |
| Nominal Motor Speed | 50Hz | min-1 | 1425 |
| Nominal Motor Speed | 60Hz | min-1 | 1725 |
| Sound Level | - | dB(A) | 58 |
| Water Vapour Tolerance Max | - | mbar | - |
| Water Vapour Capacity | - | ℓ/h | - |
| Operating Temperature Ambient | - | °C | 40 |
| Weight Appox | - | kg | 13.5 |
