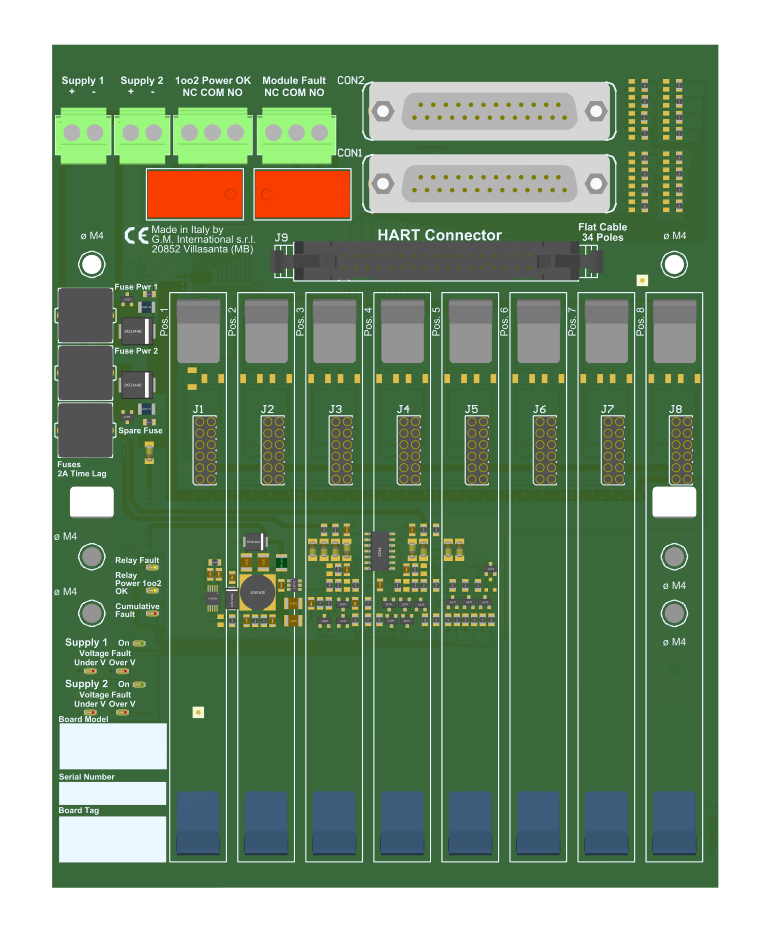

Termination Board 8 Positions for ABB S800
(In stock)
| Poduct Name | Termination Board 8 Positions for ABB S800 |
| Model number | TB-D5008-ABB-001 |
| Brand | GM International |
| Category | Termination Boards for I/O Systems |
| Country of Origin | Italy |
| Material | High-quality industrial-grade PCB, corrosion-resistant connectors, durable thermoplastic housing. |
| Applications | Process automation, signal connection for analog input cards in industrial environments. |
This Termination Board (TB) provides direct connection between the I/O Card of the system and D5000 / D6000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area, is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TB is connected to two plug-in terminal blocks, for a redundant power supply. The power supply for modules is given by TB power bus.
FEATURES
S800 AI Cards board interfaces.
Termination Board for current signals: (0) 4 - 20 mA.
8 positions Termination Board for up to 16 channels.
Lower cables installation and maintenance costs.
Power supplies fault monitoring.
Spare fuse provided.
Mounting hardware provided for: Wall mounting, M4 thread screw; Wall mounting, M4 self tapping screw; Single Din Rail mounting kit.
Discover TERMINATION BOARDS
STATUS
ACTIVE
Product lifecycle policy (EN)
CHANNELS
8 or 16
