Specs at a glance
Measured Variables
Concentration
Dew Point
Cell Pressure
Cell Temperature

Hazardous area approvals

CSA Class I, Division 2
CSA Class I, Zone 2.

Field of application

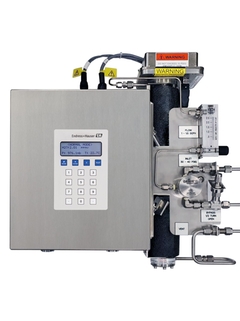

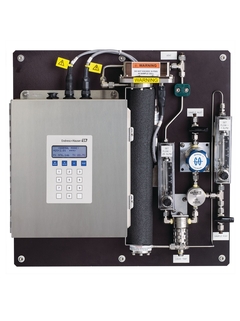

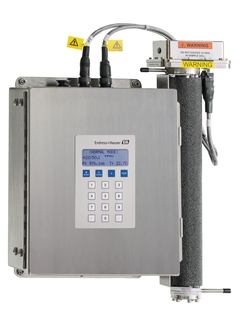

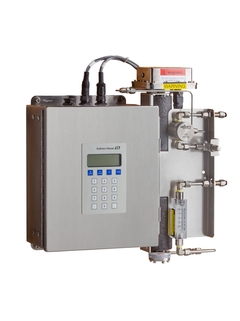

Using patented tunable diode laser spectroscopy (TDLAS) technology, the SS500 analyzer is an economical choice for measuring H2O concentration in natural gas without coming into physical contact with the stream. The result is a sensor that does not suffer from contamination or drift due to vapor impurities such as glycol, methanol, or amines.

Natural gas quality measurements in production, storage, transportation, and distribution

Monitoring for natural gas pipelines, processing plants, compressor stations, gathering sites, and distribution quality

Suitable for use as a check-measurement device

Measurable ranges of up to 0-250 lb/mmscf (0-5275 ppm) H2O

Benefits
Economical real-time moisture measurements

Virtually maintenance-free

Reliable in harsh environments

Fast and accurate with no wet-up or dry-down delays

No contamination or drift due to vapor impurities such as glycol, methanol, amines, hydrogen sulfide, or mercaptans

NIST-traceable calibration with analog and serial outputs for remote monitoring

CSA certified for CSA Class 1, Division 2 or Class 1, Division .
