Specs at a glance
Max. measurement error
Density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: 2m/s

Measuring range
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature maximum 0 to +100 °C (32 to +212 °F)
Acoustic Density 0.7 to 1.5 g/cm³

Medium temperature range
0 to 100 °C (32 to 212 °F)

Process temperature
0 to 100 °C (32 to 212 °F)

Max. process pressure
max. 16 bar at 20 °C (232 psi at 68 °F)

Process pressure
max. 16 bar at 20 °C (232 psi at 68 °F)

Wetted materials
Stainless steel 1.4571 (316 Ti)

See all specifications
Field of application

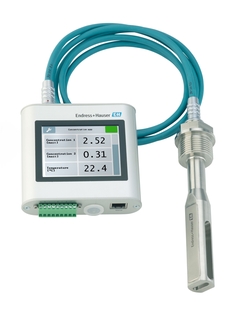

The insertion measuring device Teqwave I was developed for accurate real-time liquid analysis in vessels and larger pipes. Dedicated to in situ concentration measurement, Teqwave monitors various measuring parameters at once, and thus reduces operational expenditure. Match your Teqwave transmitter perfectly to your production needs: You can flexibly define and extend your application range.

The acoustic waveguide measures precisely and reliably, even the smallest changes are detected

Continuous concentration measurement of liquids in vessels or large pipes.

Device properties

Insertion length: 180 mm (7 in) or 500 mm (20 in)

Accurate and independent of flow profile

Industry-compliant, easy installation via DIN rail

3.5" TFT color touch screen or LED indication

4-20 mA, Modbus TCP

Benefits
Easy and efficient – real-time in situ liquid analysis

Full transparency – constant monitoring of product quality without sampling

Highest process safety – reliable metering due to robust, maintenance-free sensor

Cost-saving – fewer measuring points due to multivariable measurement

Customized usage – innovative application concept, expendable for changing measuring tasks

Simplified process control – user-friendly operation and clear status visualization

Local data backup – integrated data storage for measured values up to 7,5 years.
