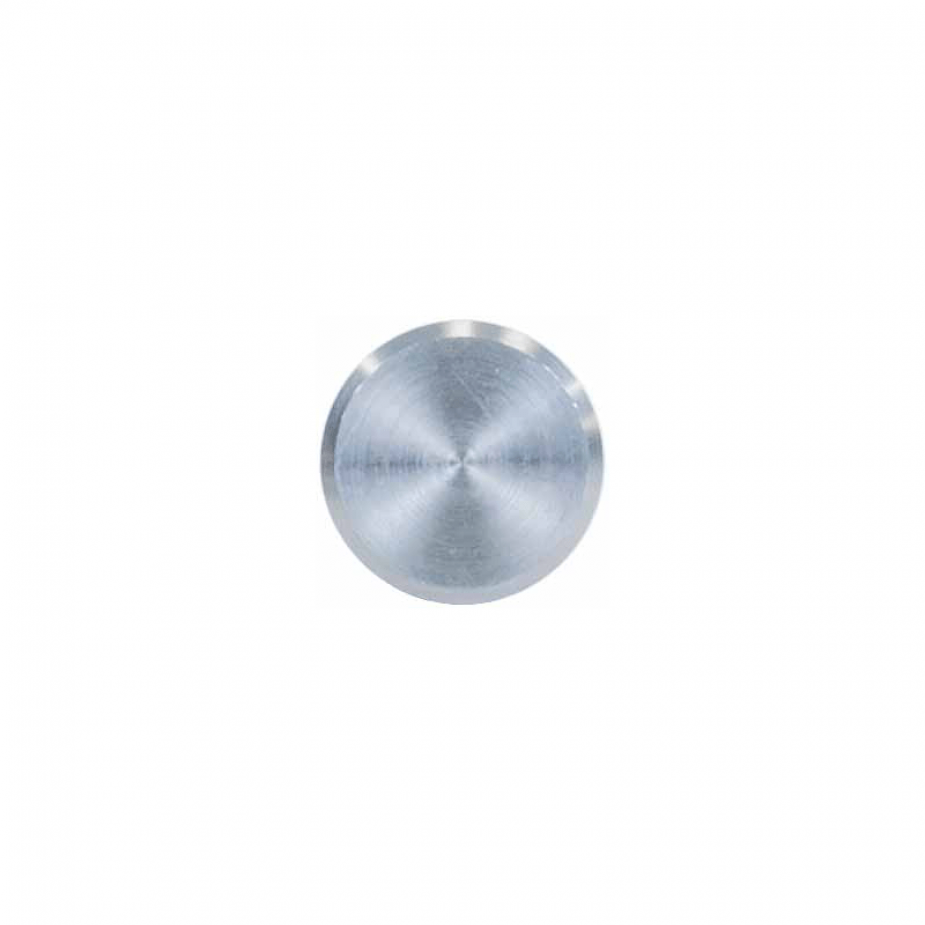

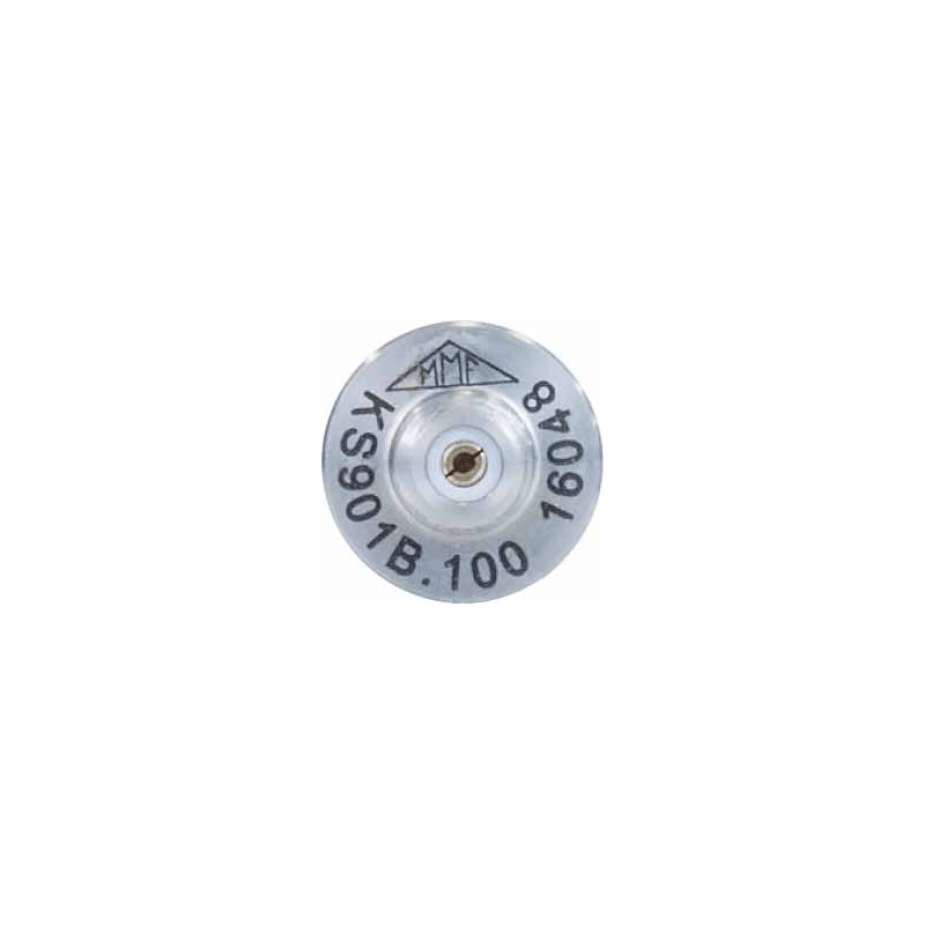

Universal Accelerometer
(In stock)
| Product Name | Universal Accelerometer |
| Model Number | KS901B10 |
| Brand | Metra Mess |
| Category | Universal Accelerometers |
| Country of Origin | Germany |
| Material | Stainless steel housing |
| Applecation | Designed for integration into devices, the KS901B10 is mounted by gluing into a drill hole (Ø10 mm, depth >6 mm) or clamping. It features an IEPE output with a sensitivity of 10 mV/g, suitable for a measuring range up to 5000 m/s², and operates within a frequency range of 0.35 Hz to 28 kHz. |
These OEM accelerometers are suitable for installation in devices.. The assembly is done by gluing it into a hole.
Technical data
Output | IEPE |
Mass | 5,2 g |
Sensivity | 10 mV/g |
Measuring range | 5000 m/s² |
Lower frequency limit (3 dB) | 0.35 Hz |
Upper frequency limit (3 dB) | 28 kHz |
Connection | UNF 10-32, axial |
Mounting | Gluing in drill hole Ø10, depth >6 or clamping |
Working temperature range | -30 .. 120 °C |
