Triaxial mounting cube 3 x M8
(In stock)
| Product Name | Triaxial mounting cube 3 x M8 |
| Model Number | 230 |
| Brand | Metra Mess |
| Category | Mounting Accessories |
| Country of Origin | Germany |
| Material | Anodized Aluminum |
| Applecation | Enables precise triaxial measurements with uniaxial accelerometers; ideal for vibration analysis and structural testing. |

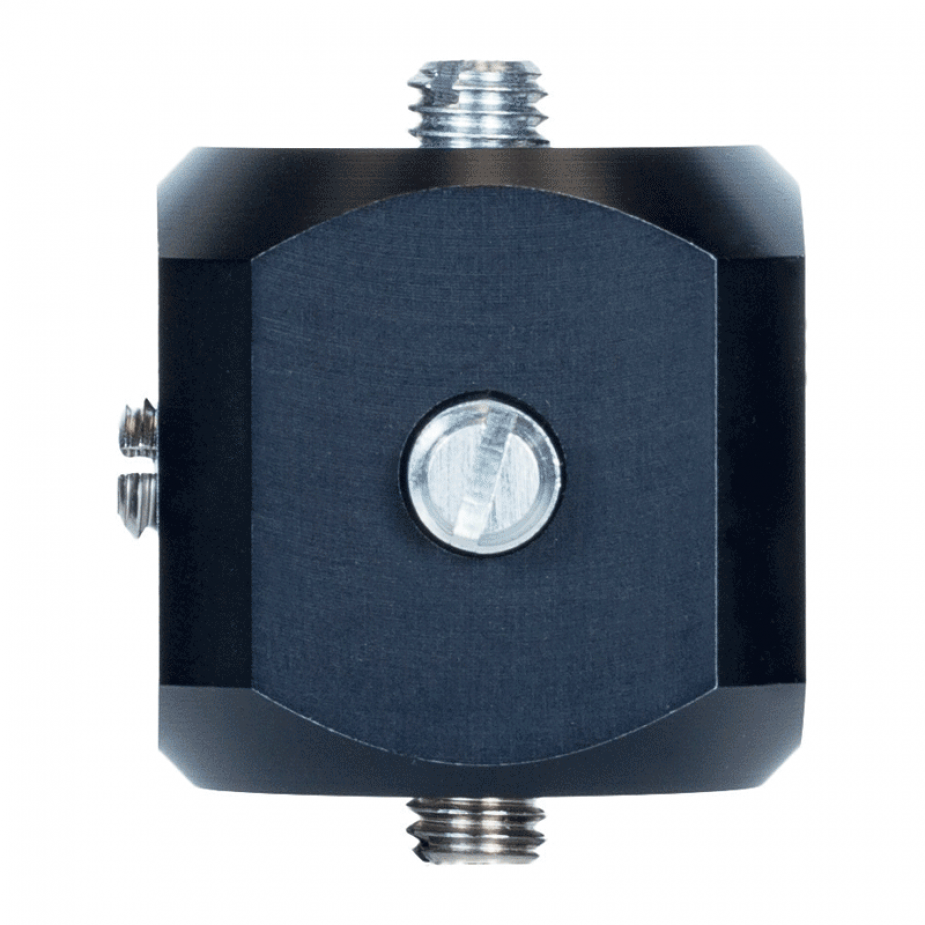

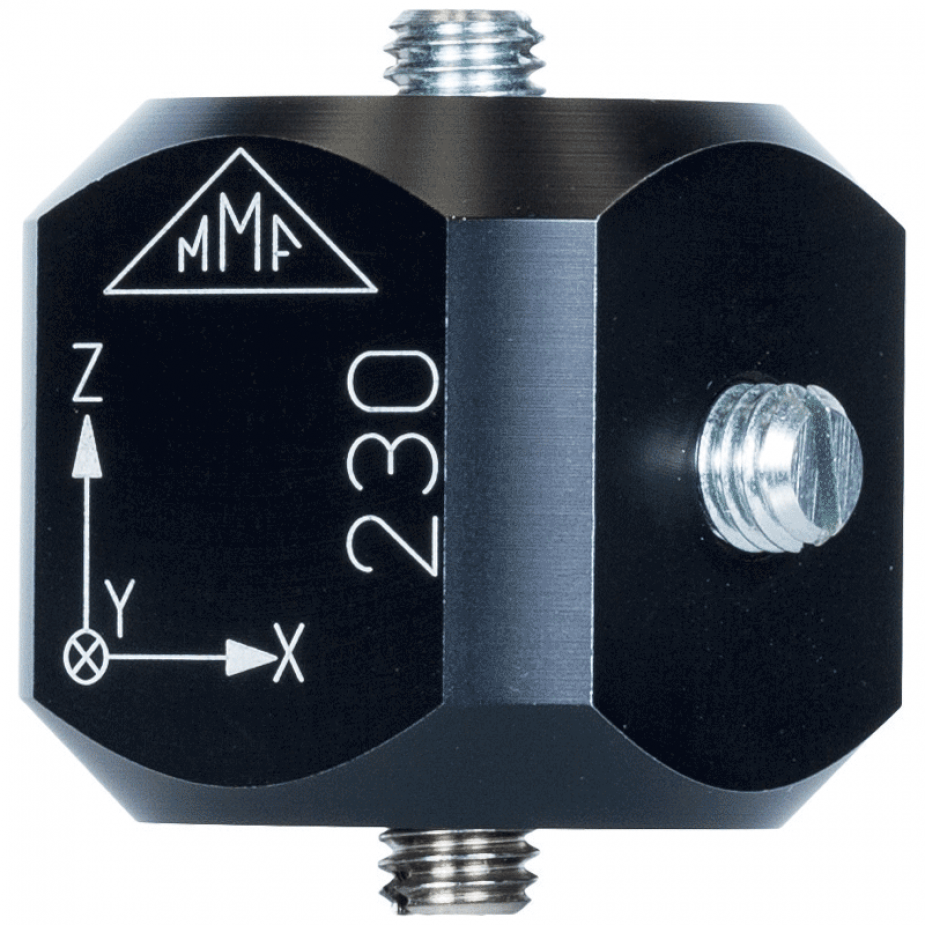

The 230 Triaxial Mounting Cube is designed to facilitate triaxial measurements using uniaxial accelerometers. Its adjustable design in the X/Y direction allows for precise sensor alignment. Constructed from anodized aluminum, it features three M8 female threads for sensor attachment and an M8 thread for mounting to the test object. The cube measures 34 x 34 x 34 mm and weighs 95 grams. Screws are included for secure installation. This accessory is suitable for various accelerometers, including the KS48C Highly Sensitive Accelerometer and the KS84.100 Industrial Accelerometer.
